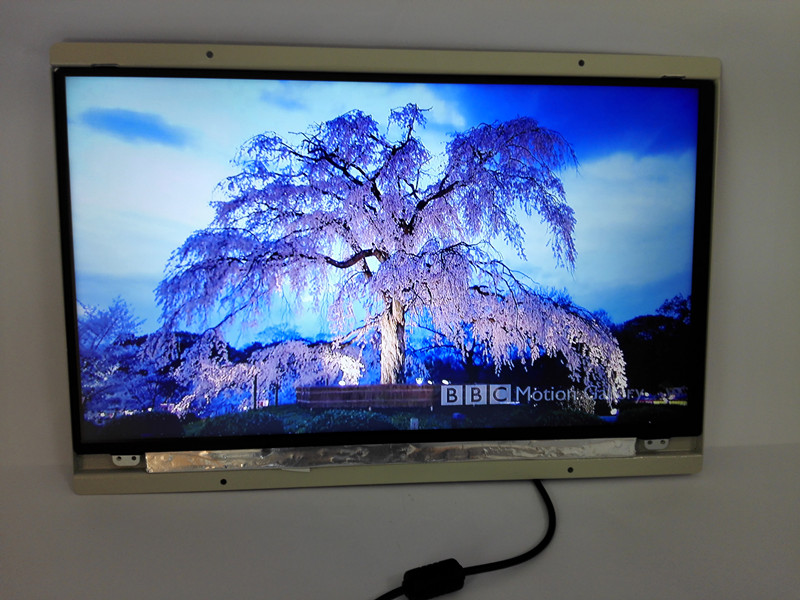

DS005S-3 High quality Low Cost 15.6" open frame Media player for Retail advertisement
 |
Product Name:
DS005S-3 High quality Low Cost 15.6" open frame Media player for Retail advertisement
Number :
DS005-3
 |
Product Description:
DS005S-3 High quality Low Cost 15.6" open frame Media player for Retail advertisement
Descriptions:
* DS005S-3 is a high performance full 1080P media player designed
for kiosks and advertising.
* It is an ideal demonstration player which were used to make
presentation of your business or service
* It is an ideal replacement for blue ray and DVD video players
* It is an ideal replacement for standalone media player and Large LCD and TV display. as well as multi-zone-display
*
Applications:
it is widely used in the supermarket, banks, restaurants, retail stores, hotels, museums, exhibitions, art galleries, parks...as well
as other Commercial applications, Presenting your products with images and videos in a slide show can easily capture the attention
of a target audience.
as other Commercial applications, Presenting your products with images and videos in a slide show can easily capture the attention
of a target audience.
Main features:
A: Performance
1: Video performance:
MP4,MOV,AVI(DIVX, MPRG-4AVC(h.264) ,ASF,WMV9,FLV, MKV,RM/RMVB, TS(AVC,H.264), VOB,DAT
Especially for AVC (h264), TS, MOV ,RM/RMVB
2: Audio performance
MP3, WMA (V7—9.1), MPEG1/2, WAV, MKA, LPCM, ADPCM,
AAC OGG, DOLBY AC3, DTS, RA-lossless, FLAC, APE, SRS
Especially for 24BIT /192K, APE, FLAC
3: Picture
JPEG, BMP, PNG, GIF, TIFF
B: Function
1: power up, auto play.
2: support playlist,
After you trigger a key, the playlist can define any play sequence
3: Support Background with music mode (Slideshow function)
4: support auto upgrade
5, Watch dog, there is a MCU inside, it always monitor the running of player

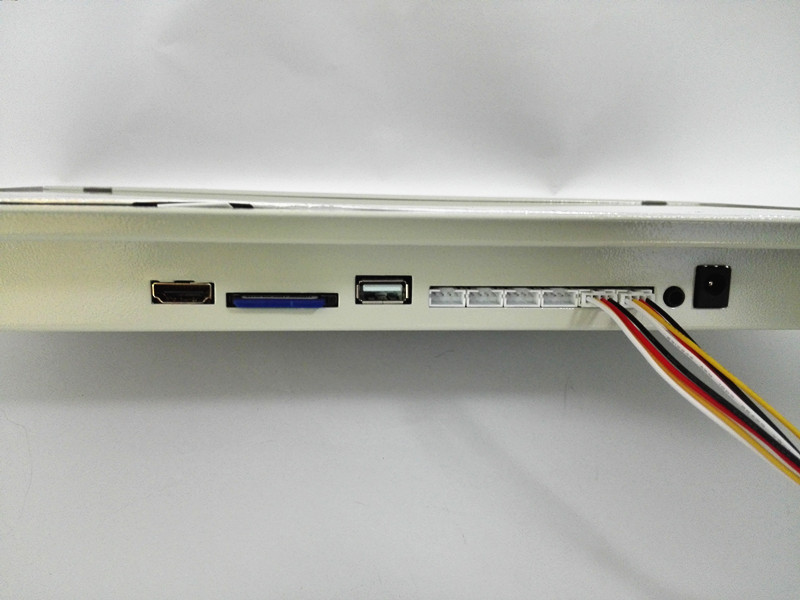

C: Interface
Input
1: RS232
2: push buttons ( can be push buttons with LED)
3: GPIO, can extent to motion sensor control
4: remote controller
5: external HDMI in
5: external HDMI in
Output
HDMI
CVBS
COAX
Optical.
Support
We supply ODM/OEM service, any software function /hardware design
We do it by customer’s requirement
We also supply online technology support.
Function description

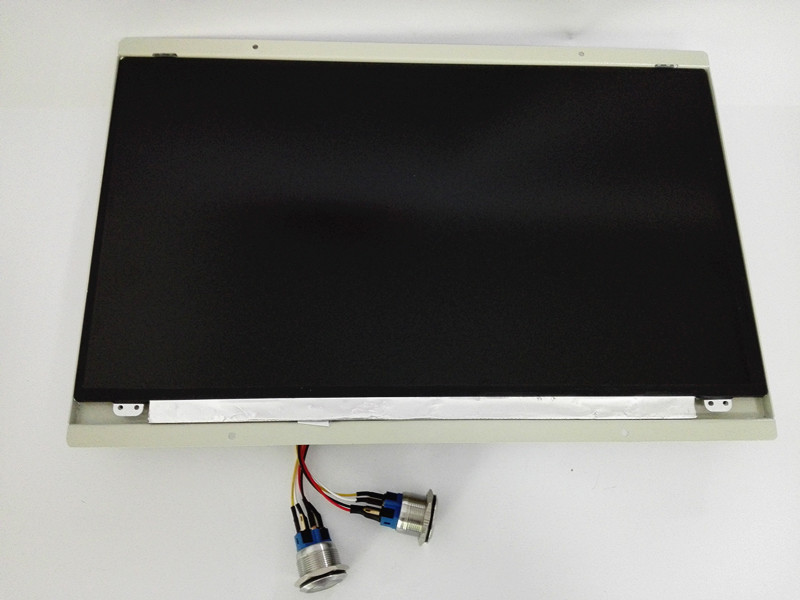

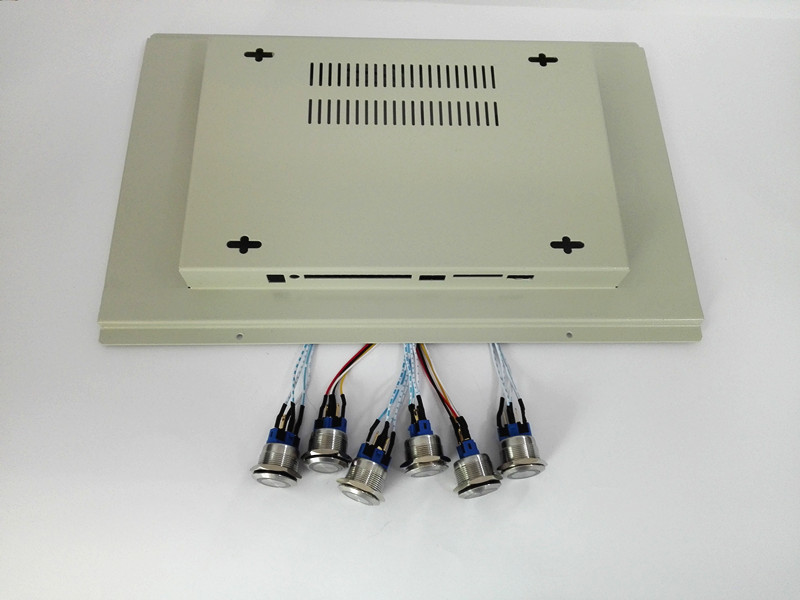

1: 6 LED Push buttons
At the front panel, there are 2 green terminal socket, can connect 6 keys
The default function is digital input, 1,2,3,4,5,6, but ,it also can be a function key
In order to setup it as function, must define IRMODE=1 in the configure file autoplay.txt
You can define as following
NEXT=1 // define Input 1 as CMD_NEXT ,
PREV=2 // define input 2 as CMD_PREV
STOP=3 // define input 3 as CMD_STOP
RETURN=
PLAY=
UP=
DOWN=
LEFT=
RIGHT=
SETUP=
VOL_PLUS= // volume up function
VOL_MINUS= // volume down
MUTE=
2:RS232 / RS485 interface,
RS232 or RS485 function is optional,
Protocol: 9600,8,N,1
Port define : DB9 Pin2===èTXD
DB9 Pin3 ===èRXD
DB9 Pin5 ===èGND
Serial data protocol as following:
@00:NEXT$
The command including 5 parts
1: @ --à this is the command start symbol
2: 00 --à this is player address, player address defined by put address=xx, in the autoplay.txt such as define Player address is 03, address=03
If the player address is 00, this is broadcast address, every player can run the command, if is non the 00 address, it is Player own address, only this address player can run the command, such as @01:NEXT$ ,only Player 1 can runt he cmd_next.
Every player has the 00 address, this is default. User address is optional.
3 : -à the colon is the separator between address and command.
4: NEXT:-à this is the command or digital input, such as
PREV
1
55
VOL_PLUS
5: $--> this is the command end symbol.
3: playlist file :autoplay.txt
All file at the root ,player will auto loop play after power up.
The file define in the autoplay.txt will play by the input (Remote controller/button/RS232).
Every input define in one line, format as following
XX_YY=File path
XX, YY is digit, YY is optional, YY is jump input, after XX is play finish, will jump to YY play.
File path ,it can be a folder or a single file
Such as
01_02=video/
02=audio/
03=aaa.vob
04_04=xxx.MPG
Explain as following
01_02=video/, this line define as following, while input 1, it will play all the file in the folder “video”, after play finish, it will jump to input 2,play all the file in the folder audio, (02=audio/).
02=audio/ this line define, while input 2, it will play all file in the audio.
After play finish, it will jump back to root play.
03=aaa.vob while input 3, it will play the file aaa.vob , this file is at the root. Because there’s no folder i, all the files without folder is at root.
04_04=xxx.MPG, while input 4, it will loop play the xxx.MPG
4: photo play with background music
Place photo file at root, and create a folder “audio”,
while play the file at root, it will auto play the music file in the folder audio.
Another case, while play the specified folder, such as 02=tourist/, while input 2, it will play all the file in the folder tourist, if you already create a folder, tourist_audio, and put the audio in it , and file in the tourist is the photo, while player play the folder tourist, it will auto play the background music in the folder tourist_audio.
5: GPIO bit,
This bit can use for motion sensor, need special software.
For more questions, Please contact us ,thank you!
