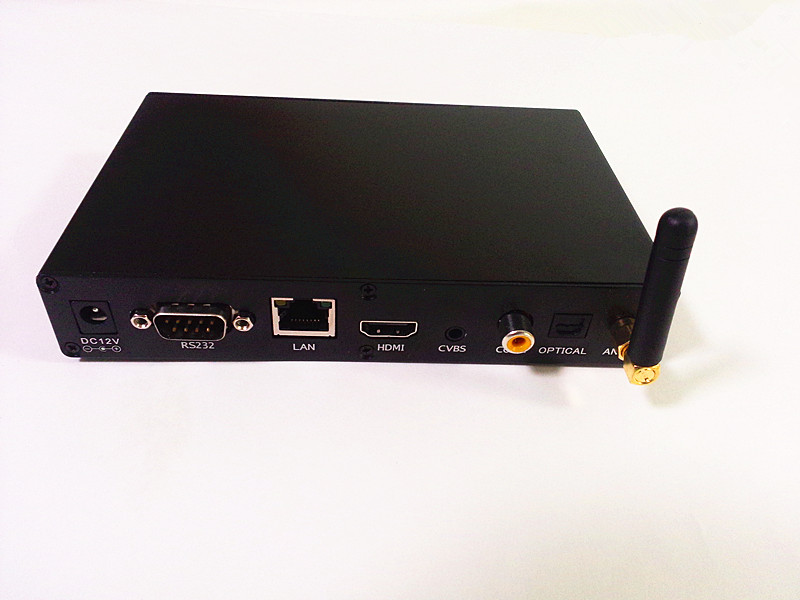

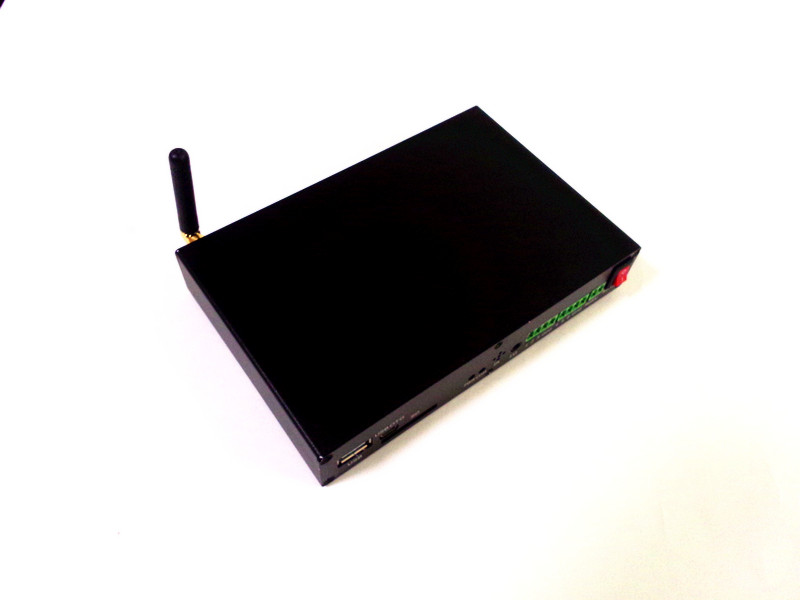

Digital Network signage player Motion sensor+ RS232/485 control+ pushbuttons+network sync lan sync
 |
Product Name:
Digital Network signage player Motion sensor+ RS232/485 control+ pushbuttons+network sync lan sync
Number :
DS009S-2
 |
Product Description:
Digital Network signage player Motion sensor+ RS232/485 control+ pushbuttons+network sync lan sync
Selling points:
This product is designed for supermarket advertisement.you can put many TV or screens in one place ( within the distance 100meters).
and all the TV or Screen will play the same content simultaneously.No HDMI Splitters. all the players transmit and receive the signal by the
antenna. This is our special design. if you need more details,kindly contact us,we can provide technical support to you all the time.
Selling points:
This product is designed for supermarket advertisement.you can put many TV or screens in one place ( within the distance 100meters).
and all the TV or Screen will play the same content simultaneously.No HDMI Splitters. all the players transmit and receive the signal by the
antenna. This is our special design. if you need more details,kindly contact us,we can provide technical support to you all the time.
| Model | DS009S-2 | |||||||||
| Chipset | Realtek1186 750MHz | |||||||||
| Housing material | Metal housing (Prviate mould) | |||||||||
| Hardware parameter | DDR3 512MB,2MBytes Nor Flash,4GBNAND FLASH | |||||||||
| Network | LAN (10/100Mbps);External wifi or Built in WiFi( optional) | |||||||||
| File system | FAT32,NTFS,EXT3,EXT2 | |||||||||
| Video Formats | BD-3D,3D-ISO,BDMV,BD-ISO,TS,AVI,ASF,WMV,MP4,MKV,RMP4,IFO,DVD-ISO, MINI BS,BD-9,BD25,RBD,D5,D9,DVD,RM/RMVB,etc | |||||||||
| Video Codecs | Full1080P ,MPEG1/2/4,XVID,H.264,WMV9,VC-1,XVID,SD/HD etc | |||||||||
| Audio formats | APE(192KHz),M4A,MPEGAUDIO(MP1,MP2,MP3,MPA),WAV,OGG,FLAC(192KH）zetc | |||||||||
| Audio Codecs | MPEG I LAYER1/2/3,LPCM,PCM,FLAC , ADPCM, AAC, WAV, OGG; DTS digital+stereo; Dolby Digital; RA1/RA-cook/RA-Lossless etc | |||||||||
| Audio sound code format | TRUEHD，DTSDTS-HD HR，DTS-HD MA | |||||||||
| Audio Pass-Through | TRUEHD,DTS,DTS-HD HR,DTS-HDMA, Dolby Digital,DolbyDigitalPlus | |||||||||
| Picture Formats | JPEG,BMP,GIF,PNG,TIFF,JPG | |||||||||
| Subtitle Formats | SUB,SMI,SSA,SRT,PGS | |||||||||
| OSD Language | English/Simplified Chinese/TraditionalChinese/Japanese/Spanish/French/German/Italian/Dutch/Russia,etc | |||||||||
| Video Output | HDMI 1.4 1080P full HD output,CVBS(Composite video) Output | |||||||||
| Audio Output | HDMI output;Optical output; Coaxial output:L FL/FR./ Stereo analog audio,SPDIF | |||||||||
| Other Interface | cE/FCC/Rohs / One year | |||||||||
| I/O | HDMI output:1920*1080P | |||||||||
| Audio output:2V±0.2V (10K Ω Load); S/N ≥92dB | ||||||||||
| AC power input:AC: 100~240 V | ||||||||||
| DC Power Output:12V / 1.5A / 12V/2A DC Power adaptor | ||||||||||
| Operating Temperature | 0~70°C Humidity: 10%~85% | |||||||||
| Storage Humidity | -20°C~80°C Humidity:5%~90% | |||||||||
| Certification& Warranty | CE/FCC/Rohs / One year | |||||||||
| Others | unit dimension: xxxxxx L*W*H. unit weight:xxxxx.packing box weight: CTN dimension:L*W*H | |||||||||
| What's in the box? | Advantages : | |||||||||
| 1×HD Media Player 1× Remote control 1× Power adapter |
1,Auto play and loop play. 2,BGM mode available 3,Watchdog timer 4,RS232 Control. 5 Define a digital as a function button. 6,Pushbutton function. 7,Motion sensor function. 8,One key copy. 9,Playlist function,10,Seamless play,11,samba function. 12,Wireless control,13,Sync play14,Ftp/bt download 15,scrolling text.16,Technical support provided all the time.The first factory to produce this unique prodcut with Prviate mould. Special offer --- Limited customers in a same country will be approved to sell our unique prodcuts so as to protect their market and enjoy much benefits |
|||||||||
