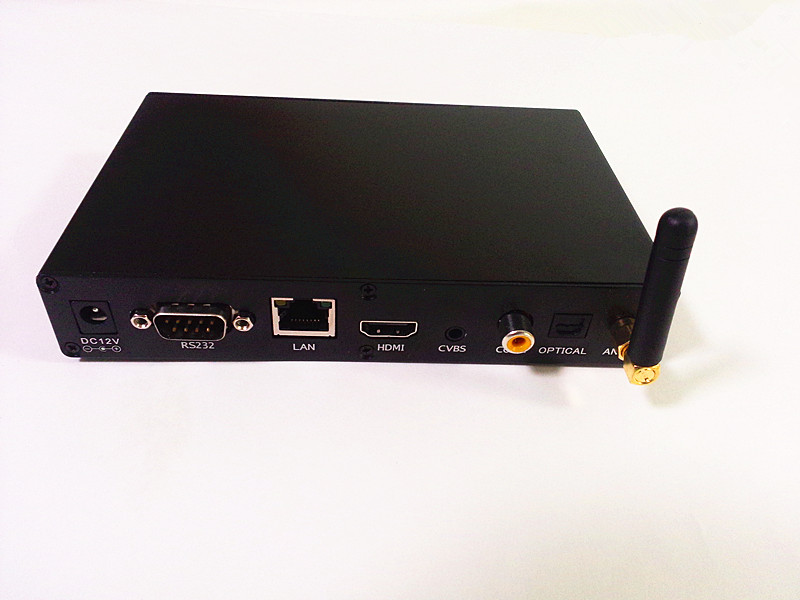

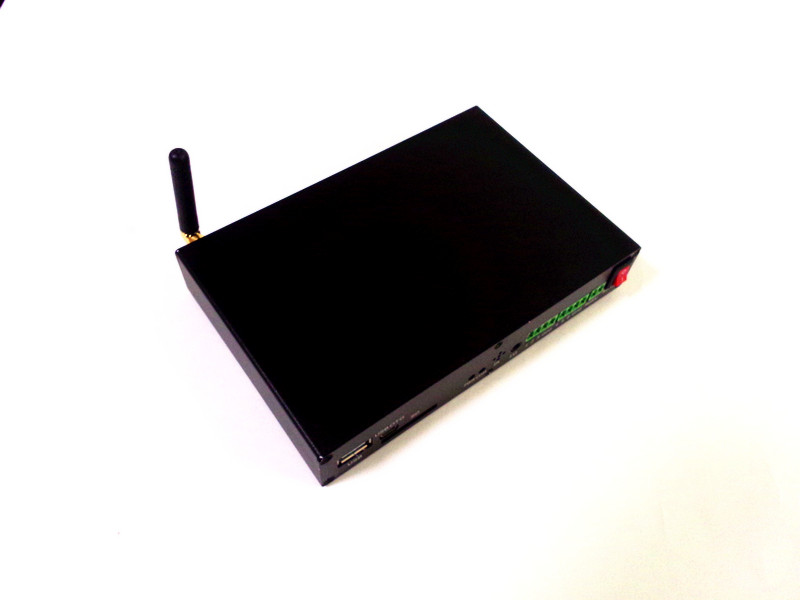

Digital Network signage player Motion sensor+ RS232/485 control+ pushbuttons+network sync lan sync
Product Name:
Digital Network signage player Motion sensor+ RS232/485 control+ pushbuttons+network sync lan sync
Number :
DS009S-2
:
:

Product Description:

                   Digital Network signage player Motion sensor+ RS232/485 control+ pushbuttons+network sync lan sync

Selling points:

This product is designed for supermarket advertisement.you can put many TV or screens in one place ( within the distance 100meters).
and all the TV or Screen will play the same content simultaneously.No HDMI Splitters. all the players transmit and receive the signal by the
antenna. This is our special design. if you need more details,kindly contact us,we can provide technical support to you all the time.

Model DS009S-2
Chipset Realtek1186   750MHz
Housing material Metal housing (Prviate mould)
Hardware parameter  DDR3 512MB,2MBytes Nor Flash,4GBNAND FLASH
Network LAN (10/100Mbps);External wifi or Built in WiFi( optional)
File system FAT32,NTFS,EXT3,EXT2
Video Formats BD-3D,3D-ISO,BDMV,BD-ISO,TS,AVI,ASF,WMV,MP4,MKV,RMP4,IFO,DVD-ISO, MINI BS,BD-9,BD25,RBD,D5,D9,DVD,RM/RMVB,etc
Video Codecs Full1080P ,MPEG1/2/4,XVID,H.264,WMV9,VC-1,XVID,SD/HD etc
Audio formats APE(192KHz),M4A,MPEGAUDIO(MP1,MP2,MP3,MPA),WAV,OGG,FLAC(192KH)zetc
Audio Codecs MPEG I LAYER1/2/3,LPCM,PCM,FLAC , ADPCM, AAC, WAV, OGG; DTS digital+stereo; Dolby Digital; RA1/RA-cook/RA-Lossless etc
Audio sound code format TRUEHD,DTSDTS-HD HR,DTS-HD MA
Audio Pass-Through TRUEHD,DTS,DTS-HD HR,DTS-HDMA, Dolby Digital,DolbyDigitalPlus
Picture Formats JPEG,BMP,GIF,PNG,TIFF,JPG
Subtitle Formats SUB,SMI,SSA,SRT,PGS
OSD Language English/Simplified Chinese/TraditionalChinese/Japanese/Spanish/French/German/Italian/Dutch/Russia,etc
Video Output HDMI 1.4 1080P full HD output,CVBS(Composite video) Output
Audio Output HDMI output;Optical output; Coaxial output:L FL/FR./ Stereo analog audio,SPDIF
Other Interface cE/FCC/Rohs  / One year
I/O  HDMI output:1920*1080P
Audio output:2V±0.2V (10K Ω Load); S/N ≥92dB
AC power input:AC: 100~240 V
DC Power Output:12V / 1.5A  /   12V/2A DC Power adaptor
Operating Temperature 0~70°C Humidity: 10%~85%
Storage Humidity -20°C~80°C Humidity:5%~90%
Certification& Warranty  CE/FCC/Rohs  / One year
Others unit dimension: xxxxxx L*W*H. unit weight:xxxxx.packing box weight: CTN dimension:L*W*H
What's in the box? Advantages :
1×HD Media Player       1× Remote control
1× Power adapter

1,Auto play and loop play.  2,BGM mode available  3,Watchdog timer 4,RS232 Control.  5 Define a digital as a function button.
 6,Pushbutton function. 7,Motion sensor function. 8,One key copy. 9,Playlist function,10,Seamless play,11,samba function.
12,Wireless control,13,Sync play14,Ftp/bt download 15,scrolling text.16,Technical support provided all the time.The first factory
 to produce this unique prodcut with Prviate mould.
